Introduction

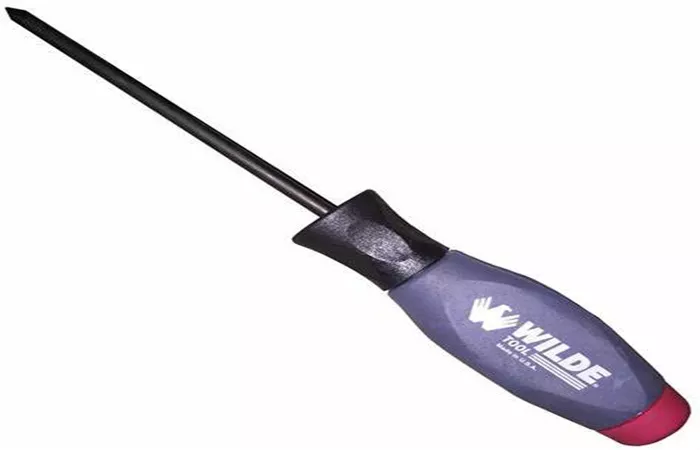

In the intricate world of hand tools, the torque screwdriver stands out as a highly specialized and indispensable instrument. Precision in fastening is crucial across a wide spectrum of industries, from aerospace and automotive manufacturing to electronics production and even DIY projects. The torque screwdriver is designed to deliver just that – an accurate and controlled amount of rotational force, or torque, when driving or removing screws. This article will explore the torque screwdriver in detail, covering its design, types, applications, advantages, and maintenance.
Design Basics
Handle
Ergonomic Design
The handle of a torque screwdriver is crafted with user comfort and control in mind. Most feature an ergonomic shape that conforms to the natural contours of the hand. Handles are often made from materials like rubber or soft – touch plastics, providing a secure and non – slip grip. This is particularly important when applying torque, as it helps prevent the screwdriver from slipping out of the user’s hand, ensuring both safety and accuracy. For example, in an automotive repair shop, where mechanics may need to apply significant torque for extended periods, an ergonomic handle reduces hand fatigue.
Torque Adjustment Mechanism
Many torque screwdrivers have an adjustable handle. This mechanism allows users to set the desired torque value. Some handles feature a simple dial – type adjustment, where the user rotates the dial to the required torque setting. Others may have a more complex locking and adjustment system, ensuring that the set torque remains constant during use. The adjustment range varies depending on the type and model of the torque screwdriver, with some covering a narrow range for precision work and others offering a wider range for more heavy – duty applications.
Shaft
Length and Diameter
Torque screwdriver shafts come in different lengths and diameters. Shorter shafts are typically used for applications where access is limited, such as in small electronic devices or tight – fitting machinery. These shorter shafts can also provide more precise control over the torque application. Longer shafts, on the other hand, are useful when more leverage is needed, for example, when working on large automotive components. The diameter of the shaft is also important. Thicker shafts are generally more robust and can transmit higher torque values without bending or breaking.
Material
High – quality torque screwdriver shafts are usually made of hardened steel. Chrome – vanadium steel is a popular choice due to its excellent strength, durability, and resistance to corrosion. This material ensures that the shaft can withstand the forces exerted during torque application and maintain its integrity over time. Some shafts may also have a special coating to further enhance their performance, such as a black oxide finish to reduce friction and prevent rust.
Tip
Compatibility
The tip of a torque screwdriver comes in various standard types, including Phillips, flat – head, Pozidriv, and Torx. Each tip type is designed to fit specific screw heads. Using the correct tip is crucial for both the accuracy of the torque application and the prevention of damage to the screw head. For instance, a Phillips – head tip should be used with Phillips – head screws, as an incorrect fit can lead to slipping and inaccurate torque delivery.
Torque Transmission
The tip is designed to efficiently transmit the torque from the shaft to the screw. It is often made of hardened material to withstand the forces involved. In some cases, the tip may have a special design to enhance its grip on the screw head, reducing the risk of cam – out (when the tip slips out of the screw head during torque application).
Types of Torque Screwdrivers
Click – Type Torque Screwdrivers
Operation Principle
Click – type torque screwdrivers are among the most common types. They work on a simple yet effective principle. When the preset torque value is reached, the screwdriver emits an audible “click” and a tactile feedback. This indicates to the user that the desired torque has been applied. The click mechanism is based on a spring – loaded system. As the torque increases, the spring compresses until it reaches a point where it releases, causing the click.
Advantages
Click – type torque screwdrivers are easy to use. The audible and tactile feedback provides immediate confirmation to the user, reducing the risk of over – or under – tightening. They are widely used in industries such as automotive, electronics, and furniture assembly, where consistent torque application is required.
Limitations
One limitation of click – type torque screwdrivers is that they may not be as accurate as some other types, especially at the lower end of their torque range. Additionally, the click mechanism may wear over time, affecting the accuracy of the torque measurement.
Dial – Indicator Torque Screwdrivers
Operation Principle
Dial – indicator torque screwdrivers feature a dial on the handle that shows the applied torque in real – time. As the user rotates the screwdriver, a mechanical or electronic sensor measures the torque and displays it on the dial. This allows the user to monitor the torque application continuously and stop when the desired value is reached.
Advantages
Dial – indicator torque screwdrivers offer a high level of accuracy. They are particularly useful in applications where precise torque control is crucial, such as in aerospace manufacturing or medical device assembly. The real – time torque monitoring also provides valuable feedback to the user, enabling them to adjust their technique if necessary.
Limitations
These screwdrivers are generally more complex and expensive than click – type models. They may also require regular calibration to maintain their accuracy. Additionally, the dial can be difficult to read in some lighting conditions or when working in tight spaces.
Digital Torque Screwdrivers
Operation Principle
Digital torque screwdrivers use advanced electronics to measure and display the applied torque. They typically feature a digital display on the handle, which shows the torque value in real – time. Some digital torque screwdrivers can also store and transmit data, allowing for easy record – keeping and quality control.
Advantages
Digital torque screwdrivers offer the highest level of accuracy and precision. They are easy to read, even in low – light conditions, and can provide additional features such as peak torque memory and units conversion. They are commonly used in high – tech industries, research laboratories, and quality control departments.
Limitations
Digital torque screwdrivers are often the most expensive type. They require batteries or charging, and if the battery runs out during use, it can disrupt the work process. They also need regular calibration to ensure accurate performance.
Applications
Automotive Industry
Engine Assembly
In automotive engine assembly, torque screwdrivers are used to fasten various components, such as cylinder heads, connecting rods, and crankshaft bearings. Precise torque application is crucial to ensure the proper functioning and longevity of the engine. For example, if the cylinder head bolts are not tightened to the correct torque, it can lead to leaks, uneven compression, and engine damage.
Suspension and Brake System Installation
Torque screwdrivers are also essential for installing and maintaining the suspension and brake systems. Components like shock absorbers, brake calipers, and wheel nuts need to be tightened to specific torque values to ensure safe and reliable operation of the vehicle. Incorrect torque can result in brake failure, uneven tire wear, or handling problems.
Aerospace Industry
Aircraft Assembly
The aerospace industry places extremely high demands on the accuracy of torque application. Torque screwdrivers are used in every stage of aircraft assembly, from attaching wing components to installing interior fittings. In aircraft, even a slight deviation from the specified torque can have serious consequences, including structural integrity issues and flight safety risks.
Maintenance and Repair
During aircraft maintenance and repair, torque screwdrivers are used to ensure that all fasteners are tightened to the correct specifications. This helps to maintain the airworthiness of the aircraft and prevent potential failures during flight.
Electronics Industry
Circuit Board Assembly
In the electronics industry, torque screwdrivers are used to fasten components to circuit boards. The screws used in circuit board assembly are often small and require precise torque application to avoid damaging the delicate components or the board itself. Torque screwdrivers help to ensure that the components are securely fastened without over – tightening, which could cause cracks or other damage.
Device Assembly
Torque screwdrivers are also used in the assembly of consumer electronics devices, such as smartphones, tablets, and laptops. Precise torque control is important to ensure the proper functioning of the device and to prevent issues like loose connections or damaged cases.
Medical Device Manufacturing
Surgical Instrument Assembly
Medical device manufacturers use torque screwdrivers to assemble surgical instruments. These instruments need to be assembled with the utmost precision to ensure their functionality and safety. Torque screwdrivers help to ensure that all components are fastened correctly, reducing the risk of instrument failure during surgery.
Implantable Device Manufacturing
For implantable medical devices, such as pacemakers and artificial joints, precise torque application is crucial. The devices need to be assembled to exact specifications to ensure their long – term reliability and compatibility with the human body.
Advantages of Torque Screwdrivers
Precision
The primary advantage of torque screwdrivers is their ability to apply a precise amount of torque. This helps to ensure that screws are neither over – tightened, which can cause damage to the materials or components, nor under – tightened, which can lead to loose connections and potential failures.
Consistency
Torque screwdrivers enable consistent torque application, especially in mass production environments. This helps to maintain product quality and reliability, reducing the number of defective products due to inconsistent fastening.
Safety
By preventing over – or under – tightening, torque screwdrivers contribute to safety. In applications such as automotive and aerospace, incorrect torque can have serious safety implications. Torque screwdrivers help to minimize these risks.
Disadvantages and Limitations
Cost
Torque screwdrivers, especially digital and high – precision models, can be relatively expensive. This may be a barrier for some individuals or small businesses, especially those with limited budgets.
Calibration Requirements
To maintain their accuracy, torque screwdrivers need to be calibrated regularly. Calibration can be time – consuming and costly, especially if it needs to be done by a professional calibration service.
Complexity
Some torque screwdrivers, especially digital and dial – indicator models, can be complex to operate. This may require additional training for users, especially those who are not familiar with the technology.
Maintenance and Care
Cleaning
Regular cleaning is essential to keep torque screwdrivers in good working condition. After each use, wipe the handle, shaft, and tip with a clean cloth to remove any dirt, grease, or debris. Avoid using harsh chemicals or abrasive cleaners, as they can damage the surface of the screwdriver.
Calibration
As mentioned earlier, torque screwdrivers need to be calibrated regularly. Follow the manufacturer’s instructions for calibration intervals and procedures. Calibration can be done using a torque calibration machine or by sending the screwdriver to a professional calibration service.
Storage
Store torque screwdrivers in a dry, clean place. Avoid exposing them to extreme temperatures or humidity, as this can affect their accuracy. Some torque screwdrivers come with a protective case, which should be used for storage to prevent damage.
Conclusion
The torque screwdriver is a vital tool in many industries, enabling precise and consistent fastening. Whether you are a professional in the automotive, aerospace, electronics, or medical device industry, or a DIY enthusiast working on a precision project, understanding the different types of torque screwdrivers, their applications, advantages, and limitations is crucial. By choosing the right torque screwdriver for the job and taking proper care of it, you can ensure accurate and reliable fastening, contributing to the quality and safety of your work.
