Air compressors are essential tools in various industries and households. They are devices that convert power, usually from an electric motor, a diesel engine, or a gasoline engine, into potential energy stored in compressed air. This compressed air can then be used to power a wide range of tools and machinery. Air compressors come in different sizes and types, each suited for specific applications. Understanding their basic principles, types, and applications can help you choose the right compressor for your needs.
How Air Compressors Work
At the heart of an air compressor is the principle of compressing air to increase its pressure. This process involves drawing in ambient air, compressing it to a higher pressure, and then storing it in a tank or directly using it to power tools. The basic components of an air compressor include:
Compressor Pump: This is the main part that does the work of compressing the air. It can be a piston, rotary screw, or centrifugal type.
Motor: The motor provides the power needed to drive the compressor pump.
Tank: The tank stores the compressed air. It helps to smooth out the supply of air, providing a constant flow even when the compressor is not running.
Valves: Valves control the intake and exhaust of air, ensuring that the air flows in the correct direction.
Cooling System: Compressing air generates heat, so air compressors often have cooling systems to prevent overheating.
Types of Air Compressors
Air compressors can be categorized into several types based on their design and the method they use to compress air. Each type has its own advantages and is suited for different applications.
Reciprocating Air Compressors

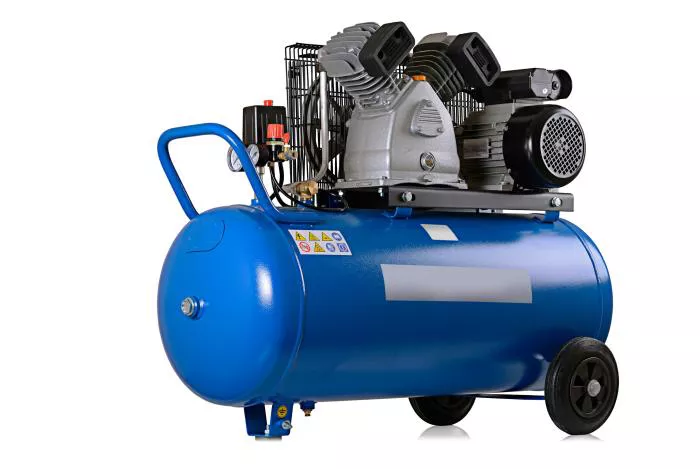

Reciprocating air compressors, also known as piston compressors, are one of the most common types. They use a piston and cylinder arrangement to compress air. The piston moves back and forth inside the cylinder, drawing in air and then compressing it as it moves back.
Single-Stage: In a single-stage reciprocating compressor, the air is compressed in one stroke. These are generally suitable for low to moderate pressure applications.
Two-Stage: Two-stage compressors compress the air in two stages, first to an intermediate pressure and then to a higher pressure. This design is more efficient for high-pressure applications.
Reciprocating air compressors are versatile and can be found in a wide range of settings, from small workshops to large industrial plants. They are known for their reliability and ability to provide high-pressure air.
Rotary Screw Air Compressors
Rotary screw air compressors use two interlocking screws to compress air. As the screws turn, they draw in air and compress it as the space between them decreases. These compressors are known for their continuous operation and are ideal for applications requiring a steady supply of compressed air.
Oil-Injected: Oil-injected rotary screw compressors use oil to lubricate and cool the screws and to seal the compression chamber. This type is common in many industrial applications.
Oil-Free: Oil-free rotary screw compressors do not use oil for lubrication, making them suitable for applications where oil contamination is a concern, such as in food and pharmaceutical industries.
Rotary screw air compressors are generally more compact and quieter than reciprocating compressors, making them a popular choice for many businesses and industries.
Centrifugal Air Compressors
Centrifugal air compressors use a rotating impeller to accelerate the air, which then slows down in a diffuser, converting the kinetic energy into pressure energy. These compressors are typically used for large-scale applications where high volumes of air at moderate pressures are required.
Multistage: Centrifugal compressors can be designed with multiple stages to achieve higher pressures. Each stage consists of an impeller and a diffuser, with intercoolers between stages to cool the air.
Centrifugal air compressors are known for their high efficiency and reliability in large industrial settings. They are commonly used in power plants, chemical processing, and other heavy industries.
Vane Air Compressors
Vane air compressors use a rotor with sliding vanes to compress air. As the rotor turns, the vanes are forced outward by centrifugal force, creating chambers that draw in, compress, and discharge air. These compressors are generally used for smaller applications due to their lower capacity.
Single-Vane and Multi-Vane: Vane compressors can have a single vane or multiple vanes, with multi-vane designs providing more efficient compression.
Vane air compressors are simple and robust, making them a good choice for applications where ease of maintenance and reliability are important.
Applications of Air Compressors
Air compressors are used in a wide variety of applications across different industries. Their ability to provide a reliable source of compressed air makes them indispensable in many settings.
Industrial Applications
In industries, air compressors are used for a multitude of purposes:
Powering Tools: Air compressors drive pneumatic tools such as drills, sanders, and nailers, which are common in construction, manufacturing, and automotive industries.
Automation: Many automated systems rely on compressed air to operate actuators, valves, and other components.
Process Control: In chemical and petrochemical plants, compressed air is used for process control, instrumentation, and safety systems.
Commercial Applications
In commercial settings, air compressors are essential for:
HVAC Systems: Compressed air is used in heating, ventilation, and air conditioning systems for various purposes, including air cleaning and cooling.
Cleaning Equipment: Compressed air is used in air blowers and cleaning equipment for maintaining cleanliness in offices, retail spaces, and other commercial environments.
Residential Applications
Air compressors are also commonly used in homes for:
Home Projects: DIY enthusiasts use air compressors for painting, cleaning, and operating pneumatic tools for various home improvement projects.
Yard Maintenance: Compressed air is used for inflating tires, powering lawn equipment, and other yard maintenance tasks.
Healthcare Applications
In healthcare, air compressors are used for:
Medical Equipment: Compressed air is used to power medical devices and equipment, such as ventilators and nebulizers.
Sterilization: Compressed air is essential for sterilizing medical instruments and equipment.
Food and Beverage Industry
In the food and beverage industry, air compressors are used for:
Packaging: Compressed air is used for packaging processes, including filling, sealing, and labeling.
Processing: Compressed air is essential in various processing steps, such as mixing, cutting, and conveying.
Marine and Shipbuilding
In the marine and shipbuilding industry, air compressors are used for:
Propulsion: Compressed air is used for starting ship engines and for various propulsion systems.
Maintenance: Compressed air is essential for maintenance tasks, including cleaning and operating pneumatic tools on board ships.
Advantages of Air Compressors
Air compressors offer several advantages that make them a popular choice for various applications:
Energy Efficiency
Air compressors are generally energy-efficient, especially modern models with advanced designs and technologies. They convert electrical energy into pneumatic energy with minimal losses, providing a cost-effective source of power.
Versatility
Air compressors are highly versatile and can be used for a wide range of applications. They can power various tools and machinery, making them an essential tool in many industries.
Reliability
Air compressors are known for their reliability and durability. They can operate continuously for long periods with proper maintenance, providing a consistent supply of compressed air.
Safety
Compressed air is a safer alternative to electricity in many applications. It eliminates the risk of electrical shocks and is generally safer to use in hazardous environments.
Portability
Portable air compressors can be easily moved and used in different locations. This makes them ideal for on-site work, construction projects, and other applications where mobility is important.
Maintenance of Air Compressors
Proper maintenance is essential to ensure the longevity and efficient operation of air compressors. Here are some key maintenance tips:
Regular Inspections
Regularly inspect the compressor for any signs of wear, leaks, or damage. Check the belts, hoses, and connections to ensure they are in good condition.
Lubrication
Proper lubrication is crucial for the smooth operation of air compressors. Follow the manufacturer’s guidelines for lubrication, including the type and frequency of oil changes.
Air Filter Maintenance
Clean or replace air filters regularly to prevent dust and debris from entering the compressor. A clogged filter can reduce the efficiency of the compressor and lead to overheating.
Drain the Tank
Drain the moisture from the tank regularly to prevent rust and corrosion. Moisture can accumulate in the tank after compression and lead to damage over time.
Check and Replace Seals
Inspect the seals and gaskets for leaks and replace them as needed. Proper sealing is essential to maintain the efficiency of the compressor and prevent air leaks.
Follow Manufacturer’s Guidelines
Always follow the manufacturer’s guidelines for maintenance, including recommended service intervals and specific procedures. This ensures that the compressor operates safely and efficiently.
Troubleshooting Common Issues
Air compressors, like any machinery, can experience issues over time. Here are some common problems and how to troubleshoot them:
Low Pressure
If the air compressor is not delivering enough pressure, check the following:
Valves: Ensure that the intake and exhaust valves are functioning correctly.
Leaks: Inspect for any leaks in the system that could be causing a drop in pressure.
Settings: Verify that the pressure settings are correct and that the regulator is functioning properly.
Overheating
If the air compressor is overheating, consider the following:
Cooling System: Check the cooling system, including fans and radiators, to ensure they are functioning correctly.
Ventilation: Ensure that the compressor is well-ventilated and that there is adequate airflow around it.
Lubrication: Verify that the compressor is properly lubricated and that the oil level is adequate.
Excessive Noise
If the air compressor is making excessive noise, it could be due to:
Loose Parts: Check for any loose parts or components that could be causing vibrations.
Misalignment: Ensure that the compressor is properly aligned and that the pulleys and belts are correctly positioned.
Wear and Tear: Inspect for any signs of wear and tear on the moving parts and replace them as needed.
Air Leaks
If you notice air leaks in the system, take the following steps:
Inspect Connections: Check all connections and joints for leaks and tighten them as needed.
Sealants: Use appropriate sealants or gaskets to seal any leaks.
Replace Damaged Components: Replace any damaged hoses, fittings, or seals that could be causing leaks.
The field of air compressors is constantly evolving, with new technologies and innovations enhancing their performance and efficiency. Here are some future trends to watch:
Energy Efficiency
Future air compressors are likely to incorporate more energy-efficient technologies, such as variable speed drives and advanced control systems. These technologies will help reduce energy consumption and operating costs.
Smart Compressors
The integration of IoT (Internet of Things) technology into air compressors will enable real-time monitoring and control. Smart compressors can provide data on performance, maintenance needs, and energy usage, allowing for more efficient operation and reduced downtime.
Noise Reduction
Advancements in materials and design will lead to quieter air compressors. Noise reduction technologies will make compressors more suitable for applications in residential areas and noise-sensitive environments.
Compact and Portable Designs
Future air compressors will continue to become more compact and portable, making them easier to transport and use in various settings. This trend will benefit industries such as construction, agriculture, and home maintenance.
Eco-Friendly Solutions
As environmental concerns grow, there will be a push for eco-friendly air compressors. This includes the use of alternative fuels, such as biofuels, and the development of compressors with lower carbon footprints.
Conclusion
Air compressors are versatile and essential tools used in a wide range of applications, from industrial manufacturing to home projects. Understanding how they work, the different types available, and their benefits can help you choose the right compressor for your needs. Proper maintenance and troubleshooting are crucial to ensure their efficient operation and longevity. As technology advances, we can expect to see more energy-efficient, smart, and eco-friendly air compressors in the future. Whether you are a professional contractor, a DIY enthusiast, or a business owner, air compressors offer reliable and effective solutions for your air power needs.
