Wiring a ceiling fan can be a rewarding DIY project that enhances your home’s comfort and style. Proper installation ensures the fan operates efficiently and safely. This comprehensive guide will walk you through the process, covering everything from preparation to final installation.
Tools and Materials You’ll Need
Essential Tools
- Screwdrivers (flathead and Phillips)
- Wire cutters and strippers
- Voltage tester
- Pliers
- Ladder
- Drill (if necessary)
- Electrical tape
- Wire nuts
Materials
- Ceiling fan
- Ceiling fan mounting bracket
- Electrical box (if not already installed)
- Ceiling fan remote or wall control (optional)
- Electrical wire (typically 14/3 or 12/3 depending on your circuit)
- Grounding wire
Preparation
1. Turn Off Power
Before starting any electrical work, turn off the power to the circuit at the breaker box. Use a voltage tester to ensure that no electricity is running through the wires in the ceiling.
2. Gather Tools and Materials
Ensure you have all the necessary tools and materials before you begin. This helps streamline the process and prevents unnecessary trips to the hardware store.
3. Read the Fan’s Manual
Carefully review the ceiling fan’s installation manual. It will provide specific instructions and diagrams that are crucial for the installation of your particular model.
Remove Existing Fixture
1. Take Down the Old Fixture
If you’re replacing an existing ceiling light fixture, remove it by unscrewing the mounting hardware and disconnecting the wires. Keep the electrical box in place if it’s properly rated for ceiling fan use.
2. Inspect the Electrical Box
Ensure the electrical box is securely mounted and rated for ceiling fan use. Ceiling fans are heavier and require a more robust box compared to standard light fixtures. If the existing box isn’t suitable, replace it with a fan-rated box.
See also: How Much Does Vinyl Siding Cost?
Install the Ceiling Fan Bracket
1. Attach the Mounting Bracket
Install the ceiling fan mounting bracket according to the manufacturer’s instructions. The bracket should be securely attached to the electrical box and aligned with the fan’s mounting holes.
2. Support the Fan
If you’re installing a ceiling fan with a downrod, ensure it is properly supported while you wire it. Most fans come with a temporary hook or chain to hold the fan in place during installation.
Wiring the Ceiling Fan

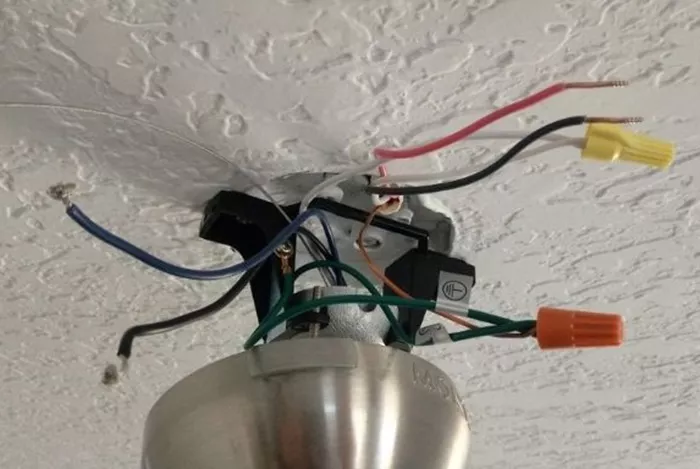

1. Identify the Wires
Ceiling fans typically have several wires:
Black (or Red) Wire: This is the hot wire for the fan motor.
White Wire: This is the neutral wire.
Green or Bare Wire: This is the ground wire.
Blue Wire: This wire is for the fan’s light kit (if applicable).
2. Connect the Wires
Connect the Black Wire: Connect the fan’s black wire to the black (or red) wire from the ceiling. This wire provides power to the fan motor.
Connect the White Wire: Connect the fan’s white wire to the white wire from the ceiling. This is the neutral wire that completes the circuit.
Connect the Green or Bare Wire: Attach the fan’s green or bare wire to the green or bare wire from the ceiling. This provides grounding to ensure safety.
Connect the Blue Wire (if applicable): If your fan has a light kit, connect the blue wire from the fan to the black (or red) wire from the ceiling that controls the light.
3. Use Wire Nuts
Twist the wires together with wire nuts, ensuring a secure connection. Wrap the wire nuts with electrical tape to provide extra security. Ensure no exposed wire is visible outside the wire nuts.
See also: How To Cut Sheet Metal?
Mount the Ceiling Fan
1. Attach the Fan Assembly
With the wiring securely connected, carefully lift the ceiling fan and attach it to the mounting bracket. Follow the manufacturer’s instructions for securing the fan to the bracket. Ensure that all screws and bolts are tightly fastened.
2. Install the Blades
Attach the fan blades to the motor assembly according to the manufacturer’s instructions. Most fans will have pre-drilled holes for blade attachment. Secure the blades with the provided screws.
3. Attach the Light Kit (if applicable)
If your fan includes a light kit, follow the instructions to attach it to the fan. Connect the light kit’s wires to the corresponding wires in the fan and secure it with the provided hardware.
Final Steps
1. Turn the Power Back On
After ensuring all connections are secure and the fan is properly mounted, turn the power back on at the breaker box.
2. Test the Fan
Use the fan’s remote control or wall switch to test its operation. Check that the fan blades rotate smoothly and the light kit (if installed) functions correctly. Verify that all speeds and settings work as expected.
3. Adjust Fan Settings
Adjust the fan’s settings according to your preference. Most ceiling fans have multiple speed settings and can rotate in both directions. Ensure the fan blades are balanced for smooth operation and minimal wobbling.
Troubleshooting
1. Fan Not Working
Check Power Supply: Ensure the breaker is on and the fan is properly connected to power.
Verify Wiring Connections: Double-check all wire connections and ensure they are secure.
Inspect Remote/Wall Control: If using a remote or wall control, ensure it is properly synced with the fan and that the batteries are fresh.
2. Fan Wobbling
Balance the Blades: Ensure the fan blades are properly aligned and tightened. You can use a blade balancing kit to correct minor wobbling.
Check Mounting: Verify that the fan is securely mounted and that all screws and bolts are tight.
Safety Considerations
Professional Help: If you’re unsure about any aspect of the installation or if the electrical work seems beyond your comfort level, consider hiring a licensed electrician to ensure proper and safe installation.
Follow Codes and Regulations: Ensure your installation complies with local building codes and regulations. Improper wiring can be a safety hazard and may not pass inspection.
Conclusion
Wiring and installing a ceiling fan can be a manageable DIY project if you follow the proper steps and safety precautions. By carefully preparing, wiring, and mounting the fan, you can enhance your home’s comfort and aesthetics. If you encounter any difficulties or are unsure about electrical work, don’t hesitate to seek professional assistance. Proper installation not only ensures the fan operates efficiently but also contributes to the overall safety of your home.
