The Kreg Pocket Hole Jig is a popular tool for creating strong, hidden joints in woodworking projects. Pocket holes allow you to join pieces of wood at an angle, resulting in clean, sturdy connections that are perfect for furniture, cabinetry, and more. In this guide, you’ll learn how to use the Kreg Pocket Hole Jig with clear, easy-to-follow steps.
Product Overview
The Kreg Pocket Hole Jig is a specialized tool designed to drill angled holes, known as pocket holes, in wood. These holes allow screws to be driven into another piece of wood at an angle, providing a strong, concealed joint. The jig is adjustable for different wood thicknesses and makes it easy for even beginners to achieve professional-looking results.
1. Setting Up Your Kreg Pocket Hole Jig
Choosing the Right Jig Model
Kreg R3 (Mini): Ideal for smaller projects or occasional use. It’s compact and affordable.
Kreg K4 and K5: More robust models suitable for larger, more frequent projects. They include additional features like dust collection and clamping systems.
Gather Your Tools
To get started, you’ll need the following:
- Kreg Pocket Hole Jig
- Kreg drill bit (usually included with the jig)
- Depth collar for the drill bit
- Clamp (optional but recommended)
- Screws (Kreg pocket hole screws are preferred)
- Drill or driver
2. Adjusting the Jig for Your Wood Thickness
Determine the Wood Thickness
The first step is to measure the thickness of the wood you’ll be joining. This will help you adjust the jig and set the drill bit depth correctly.
Adjust the Jig Settings
Set the Drill Guide Block: Adjust the jig by sliding the drill guide block to match the thickness of your wood. Most jigs have markings that correspond to common wood thicknesses (e.g., 1/2″, 3/4″, 1 1/2″).
Set the Drill Bit Depth: Use the depth collar on your drill bit to control how deep the bit will go into the wood. The jig will include a guide to help you set this accurately. For example, if you’re working with 3/4″ wood, set the collar to the corresponding depth mark on the drill bit.
3. Clamping the Wood and the Jig
Secure the Workpiece: Once the jig and drill bit are set, clamp your wood piece securely to your workbench or another stable surface. This prevents movement during drilling, ensuring accurate and clean holes.
Clamp the Jig: Position the Kreg Jig on the wood where you want to drill the pocket hole. Use a clamp to hold the jig in place, or if your model includes a built-in clamp, engage it.
See also: Chicago Electric Power Tools: A Comprehensive Review Of The Best Models

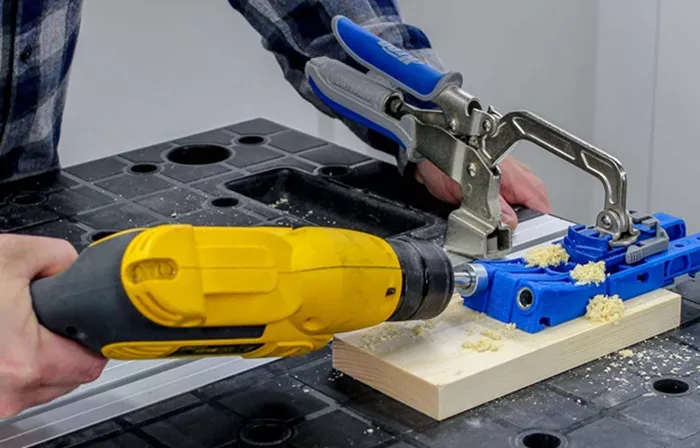

4. Drilling the Pocket Holes
Drill the Pocket Hole: Insert the drill bit into the guide hole of the Kreg Jig and begin drilling. Apply steady pressure and drill until the bit stops at the depth collar. The drill will create a clean pocket hole at the specified angle.
Repeat as Needed: Depending on the width of your workpiece, you may need to drill multiple pocket holes. For a wider board, it’s common to drill two holes side by side for a stronger joint.
5. Assembling the Joint
Align the Wood Pieces: After drilling the pocket holes, align the two pieces of wood you intend to join. Make sure they are flush and positioned as desired.
Insert the Screws: Using your drill or driver, insert the Kreg pocket hole screws into the drilled holes. The screws should pull the two pieces of wood together tightly, creating a strong bond. Kreg pocket hole screws have a special design that helps them grip the wood without splitting it, so be sure to use the correct type of screw for your project.
6. Finishing the Joint
Check for Alignment: After securing the screws, double-check that the pieces are aligned properly. Adjust as needed before fully tightening the screws.
Fill the Holes (Optional): If you want a seamless finish, you can fill the pocket holes with wood plugs or putty. Kreg offers ready-made wood plugs that fit into the holes, or you can make your own using dowels. Sand the area smooth once the filler has dried.
Advantages and Disadvantages of Kreg Pocket Hole Jigs
Advantages
Strong Joints: Pocket holes create durable, strong joints that hold up well in furniture and cabinetry.
Easy to Use: The Kreg Jig is user-friendly, even for beginners, and makes it easy to create professional-quality joints.
Concealed Fasteners: The screws are hidden inside the joint, leaving a clean and polished appearance.
Versatile: The jig can be used with a wide variety of wood thicknesses and for different types of projects.
Disadvantages
Not Ideal for All Projects: While great for furniture, pocket holes aren’t suitable for every woodworking project, especially where appearance or certain joint types are a concern.
Requires Special Screws: Kreg pocket holes work best with Kreg screws, which are more expensive than regular screws.
Comparison with Other Joinery Methods
Pocket Holes vs. Dowels
Speed: Pocket holes are faster to create than dowel joints.
Strength: Pocket holes provide strong joints, but dowels might be stronger in certain applications.
Visibility: Dowels are completely hidden, while pocket holes are visible unless filled.
Pocket Holes vs. Biscuit Joints
Ease of Use: Pocket holes are easier and faster for beginners to execute compared to biscuit joints.
Cost: Biscuit joiners and biscuits are more expensive than pocket hole jigs and screws.
Strength: Biscuit joints are stronger for aligning edges but don’t offer as much strength for load-bearing applications as pocket screws.
See also: Rolling Tool Chests Vs. Stationary Tool Chests: Which Is Better?
Specific Prices and Purchase Recommendations
Pricing
Kreg R3 (Mini Jig): $40 – $50
Kreg K4: $100 – $140
Kreg K5: $150 – $200
Where to Buy
You can find Kreg Pocket Hole Jigs at major retailers like Home Depot, Lowe’s, and online platforms like Amazon. Consider purchasing a kit that includes the jig, drill bit, depth collar, and screws for the best value.
Purchase Recommendation
For beginners, the Kreg R3 is an excellent starting point. If you’re working on larger projects or plan to use pocket holes frequently, investing in the K4 or K5 models will provide added features and ease of use.
FAQs
1. What type of screws should I use for pocket holes?
Use Kreg pocket hole screws, which are designed for pocket joinery. They come in various lengths and materials to suit different wood types.
2. Can I use the Kreg Jig with materials other than wood?
Kreg Jigs are primarily designed for wood, but they can be used with plywood, MDF, and some soft plastics. Ensure you use the appropriate screws for non-wood materials.
3. Do I need to clamp the wood when using a Kreg Jig?
Yes, clamping the wood ensures stability and accuracy while drilling pocket holes. It also prevents the workpiece from shifting.
4. How deep should pocket holes be?
The depth of the pocket hole depends on the thickness of the wood. Follow the guide on your Kreg Jig to set the correct depth for your project.
5. Can I use a pocket hole jig for angled joints?
Yes, pocket hole jigs are ideal for joining wood at various angles, making them perfect for constructing frames, cabinets, and other angled structures.
Conclusion
The Kreg Pocket Hole Jig is a game-changing tool for woodworkers of all levels. It simplifies the process of creating strong, hidden joints, making your projects look clean and professional. Whether you’re building furniture, cabinetry, or smaller crafts, the Kreg Jig offers versatility and ease of use. By following the steps in this guide, you’ll be able to confidently create sturdy pocket hole joints for all your woodworking projects.
