The AC capacitor is a vital component in your air conditioning system, responsible for starting and maintaining the motor’s electrical charge. When the capacitor fails, your AC may malfunction or stop working altogether. Fortunately, replacing an AC capacitor is a relatively straightforward task if you know how to troubleshoot and handle the process correctly. This guide covers everything you need to know about troubleshooting and replacing an AC capacitor, including signs of failure, tools required, and step-by-step replacement instructions.
Signs of a Failing AC Capacitor
Before diving into replacement, it’s crucial to recognize the symptoms of a failing AC capacitor. Knowing these signs can help you determine whether your capacitor is the culprit behind your AC issues.
AC Won’t Turn On: One of the most common indicators of a bad capacitor is when your AC unit fails to turn on. The capacitor is responsible for starting the compressor and the fan motor. If it fails, your unit will not start.
Humming Sound: A buzzing or humming noise from the AC unit without it actually powering on can suggest the capacitor is attempting to engage the motor but cannot provide enough power.
Intermittent Operation: If your AC unit runs sporadically or struggles to maintain consistent operation, it may be due to a weak or failing capacitor.
Warm Air from Vents: A faulty capacitor may cause the compressor or fan to stop running, leading to warm air blowing through your vents instead of cool air.
Burning Smell or Leaking Fluid: If you notice a burning odor or see fluid leaking from your AC unit, the capacitor may have overheated and burst, requiring immediate replacement.
Physical Damage: Visually inspecting the capacitor can reveal issues such as bulging, cracks, or leaking. These physical signs indicate that the capacitor has failed.
Troubleshooting the AC Capacitor
Once you’ve identified potential symptoms, it’s essential to troubleshoot and confirm that the capacitor is the problem before replacing it.
Turn Off Power to the AC Unit: Before doing any troubleshooting, shut off power to your AC unit at the breaker box to ensure your safety.
Visual Inspection: Begin by visually inspecting the capacitor for any physical signs of damage, such as bulging, corrosion, or leaking fluid.
Test the Capacitor with a Multimeter: Using a multimeter with a capacitance setting, you can check whether the capacitor is still functioning. After disconnecting the capacitor from the system, discharge it using a screwdriver with an insulated handle by bridging the terminals. Then, test the capacitor by placing the multimeter leads on the terminals. Compare the reading to the capacitor’s rated capacitance (printed on the side of the capacitor). If the reading is significantly lower than the rating, the capacitor needs replacement.
Check Associated Components: Sometimes, a bad capacitor can cause other parts, such as the compressor or fan motor, to malfunction. Verify that these components are functioning correctly by checking their wiring and testing for continuity.
See also: Choose The Best Air Conditioner Capacitor: A Guide To Performance And Durability
Tools and Materials Needed for Replacing an AC Capacitor
Replacing an AC capacitor requires some basic tools and materials. Ensure you have the following on hand before starting the replacement process:
- Replacement AC capacitor (match the microfarad (µF) rating and voltage)
- Insulated screwdriver (for discharging the capacitor)
- Needle-nose pliers
- Multimeter (with capacitance setting)
- Electrical tape
- Safety gloves and goggles
Step-by-Step Guide to Replacing an AC Capacitor
Follow these steps carefully to replace the AC capacitor safely and efficiently:
Turn Off Power: Ensure the power to the AC unit is turned off at the circuit breaker. This is the most crucial step to prevent electrical shock.
Access the Capacitor: Locate the access panel on your AC unit (usually on the side). Unscrew the panel to reveal the internal components, including the capacitor.
Discharge the Capacitor: Capacitors store a high voltage even when the power is off. To discharge the capacitor, use an insulated screwdriver to bridge the terminals, releasing any stored energy safely.
Note the Wiring Configuration: Before removing the old capacitor, take a picture or make a note of the wiring configuration. Most capacitors have three terminals labeled “HERM” (compressor), “FAN” (fan motor), and “C” (common). Ensure you know where each wire connects.
Remove the Old Capacitor: Using needle-nose pliers, carefully disconnect the wires from the old capacitor’s terminals. Unscrew or unclip the capacitor from its mounting bracket.
Install the New Capacitor: Place the new capacitor into the bracket and secure it in place. Reconnect the wires to the appropriate terminals using your notes or photo as a guide. Make sure the connections are snug and secure.
Test the New Capacitor: After the new capacitor is installed, use your multimeter to test it. Confirm that the capacitance is within the specified range on the label.
Reassemble the Unit: Once the capacitor is properly installed and tested, replace the access panel on the AC unit and secure it with screws.
Restore Power and Test the Unit: Turn the power back on at the breaker and test your AC unit. It should start up without any issues if the capacitor was the cause of the malfunction.
See also: Breaking Down The Cost Of AC Units: What You Need To Know
Safety Tips for Replacing an AC Capacitor
Replacing an AC capacitor is a relatively simple DIY task, but it’s important to follow safety protocols:
Always Disconnect Power: Never attempt to work on an AC unit without turning off the power at the breaker. Capacitors can store dangerous amounts of electricity even when the power is off.
Wear Safety Gear: Protect yourself with safety gloves and goggles, especially when discharging the old capacitor.
Use Insulated Tools: Always use insulated tools to avoid accidental shocks when working with electrical components.
Double-Check Your Work: Ensure that all wires are reconnected to the correct terminals and that the capacitor is securely mounted before restoring power to the AC unit.

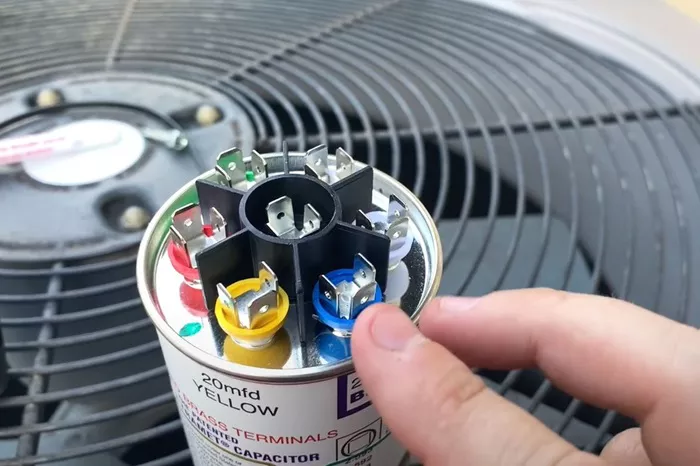

Choosing the Right Replacement Capacitor
When replacing an AC capacitor, it’s crucial to select the correct type. Capacitors are rated by their capacitance (measured in microfarads or µF) and voltage. The replacement capacitor must match the specifications of the old capacitor exactly. Installing the wrong capacitor could damage your AC system and result in more costly repairs.
Match the Microfarad Rating: The capacitance rating (e.g., 35 µF) must match the old capacitor’s rating. This ensures the capacitor provides the correct electrical charge.
Voltage Rating: The voltage rating (e.g., 370V or 440V) can be the same or higher than the original capacitor’s rating, but never lower.
Dual-Run vs. Single-Run Capacitors: AC units may use either a dual-run capacitor (which supports both the fan motor and compressor) or two single-run capacitors (one for each component). Ensure you purchase the correct type for your system.
Conclusion
Troubleshooting and replacing an AC capacitor is a task that many homeowners can handle with the right knowledge and tools. By understanding the signs of capacitor failure, following safe practices, and correctly installing the new component, you can restore your AC unit’s performance and avoid costly service calls. Whether your AC is producing warm air, making strange noises, or refusing to turn on, evaluating the capacitor is a crucial step in getting your system back on track.
