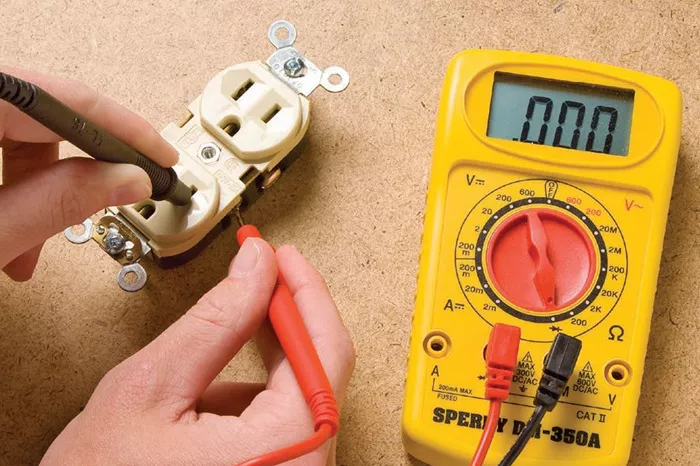

A multimeter is a versatile and essential tool used in electrical diagnostics. It measures various electrical parameters, including voltage, current, and resistance, to provide a comprehensive understanding of electrical systems. When testing an electrical outlet, the primary focus is on measuring voltage to ensure the outlet is supplying the correct amount of power. Proper testing helps identify issues such as incorrect voltage, faulty wiring, or non-functioning outlets. This guide will walk you through the process of using a multimeter to test an outlet, ensuring a thorough and safe approach.
1. Gather Necessary Tools and Safety Precautions
Tools Needed
Multimeter
Functionality: A multimeter is crucial for measuring electrical values. Ensure it is in good working condition and correctly calibrated. It should be capable of measuring AC voltage, as this is necessary for testing standard electrical outlets. Digital multimeters are generally preferred due to their ease of use and accurate readings, but analog meters can be used if you are familiar with their operation.
Insulated Gloves (Optional)
Purpose: Insulated gloves provide an additional layer of protection against electrical shocks. While it is not always necessary to wear them, especially for basic testing, they can be beneficial for those who are less experienced or when working with exposed wiring.
Safety Glasses
Purpose: Safety glasses are important to protect your eyes from potential sparks or debris. Although the risk is minimal during voltage testing, it’s better to err on the side of caution and use them to safeguard against any unforeseen incidents.
Safety Precautions
Turn Off Power (Optional)
Reasoning: Although you can test an outlet without turning off the power, doing so can increase safety, particularly if you’re unsure about the outlet’s condition. Turning off the power at the circuit breaker reduces the risk of electric shock and allows for a safer inspection of the outlet.
Verify Multimeter Settings
Check Settings: Before testing, ensure that your multimeter is set to measure AC voltage (VAC). This setting is essential for obtaining accurate readings from a standard household outlet. Verify that the multimeter’s range is appropriate for the expected voltage to prevent damage to the device and ensure precise measurements.
Inspect the Outlet
Visual Check: Perform a thorough visual inspection of the outlet for any signs of damage, such as cracks, discoloration, or loose components. Damaged outlets should be replaced or repaired by a qualified electrician to prevent electrical hazards.
2. Set Up Your Multimeter
Select Voltage Measurement
Dial Setting
AC Voltage: Set your multimeter to measure AC voltage, which is typically indicated by a sine wave (~) symbol on the dial. This setting is specifically designed for measuring the alternating current supplied to outlets in residential and commercial settings.
Range Setting
Select Range: Choose a range on the multimeter that exceeds the expected voltage level. For a standard 120V outlet, a range of 200V or 600V is appropriate. This ensures that the multimeter can handle the measurement without overloading and provides accurate results.
Probe Placement
Red Probe
Connection: Attach the red probe to the positive terminal on the multimeter. This probe will be used to measure the live (hot) wire of the outlet, which is crucial for assessing the outlet’s performance.
Black Probe
Connection: Attach the black probe to the common or negative terminal on the multimeter. This probe will be used for measuring the neutral or ground wires, depending on the test being performed.
See also: How To Install A GFCI Outlet: A Comprehensive Guide
3. Test the Voltage of the Outlet
Insert Probes
Hot and Neutral
Procedure: Insert the red probe into the shorter slot of the outlet (the hot slot) and the black probe into the longer slot (the neutral slot). Ensure the probes are securely inserted to make proper contact with the outlet’s terminals.
Ground Slot (Optional)
Alternative Test: For outlets with a ground slot (three-prong outlets), you can also test the ground by inserting the red probe into the hot slot and the black probe into the ground slot (the round hole). This test helps verify the integrity of the grounding system.
Read the Multimeter
Voltage Reading
Normal Reading: A properly functioning outlet should read close to the standard voltage for your region, such as approximately 120V in North America or 230V in many other countries. This indicates that the outlet is supplying the correct amount of power.
Interpreting Results
Correct Voltage: If the reading falls within the expected range, the outlet is likely operating correctly. This confirms that the outlet is providing the proper voltage for connected devices.
No Voltage: A reading of zero volts or no reading suggests a problem with the power supply or wiring. Further investigation is needed to identify the cause, which could include issues with the circuit breaker or wiring connections.
4. Test for Proper Wiring and Ground
Test Hot to Ground
Insert Probes
Procedure: Place the red probe into the hot slot and the black probe into the ground slot. This test helps assess the outlet’s grounding and verify that the grounding system is functioning correctly.
Check Reading
Expected Result: The voltage reading should be close to the standard voltage (e.g., 120V in North America). A significant deviation from this value may indicate grounding issues or improper wiring.
Test Neutral to Ground
Insert Probes
Procedure: Insert the red probe into the neutral slot and the black probe into the ground slot. This test helps determine if the neutral and ground wires are properly connected and if there are any potential issues with the wiring.
Check Reading
Expected Result: The reading should be close to zero volts. A significant voltage reading could suggest a problem with the neutral wire or incorrect wiring, which may require further inspection and corrective action.
See also: How To Remove A Kitchen Faucet?
5. Additional Tests for Outlet Condition
Check for Voltage Drop
Under Load
Procedure: Plug a device or appliance into the outlet and perform the voltage test again. This simulates the outlet under a typical load and helps identify any voltage drop that may occur when the outlet is used.
Interpret Results
Significant Drop: If there is a noticeable drop in voltage under load, it could indicate issues with the outlet or wiring that may require further investigation or repair.
Inspect for Open or Short Circuits
Resistance Measurement
Setting: Switch the multimeter to measure resistance (ohms). This helps identify potential issues with the outlet’s wiring, such as open or short circuits.
Test Points
Across Hot and Neutral: Check for resistance between the hot and neutral slots. High resistance could indicate an open circuit.
Across Hot and Ground: Check for resistance between the hot and ground slots. Low or zero resistance might suggest a short circuit.
6. Troubleshooting Common Issues
No Voltage
Circuit Breaker: Check the circuit breaker panel to ensure that the breaker for the outlet has not tripped. Resetting the breaker may restore power to the outlet.
Wiring Issues: Inspect the wiring connections at the outlet and circuit breaker panel. Loose or damaged wires can prevent the outlet from receiving power.
Incorrect Voltage
Breaker Issues: Verify that the circuit breaker is functioning correctly and providing the appropriate voltage. A faulty breaker may need to be replaced.
Wiring Problems: Incorrect voltage could result from wiring issues, such as miswiring or damaged wires. Further investigation may be necessary to address these problems.
Grounding Issues
Ground Wire Connection: Ensure that the grounding wire is securely connected to the outlet and the grounding system. Poor grounding can pose safety hazards and affect the performance of the outlet.
Conclusion
Testing an electrical outlet with a multimeter is an essential practice for diagnosing and maintaining the safety and functionality of your electrical system. By following the detailed steps outlined in this guide, you can accurately measure voltage, check for proper wiring, and identify potential issues. Always prioritize safety when working with electricity, and consult a licensed electrician if you encounter problems beyond your expertise. Regular testing and maintenance of electrical outlets ensure a safe and reliable electrical system in your home, contributing to overall electrical safety and performance.
