Understanding where the carburetor is located on a Craftsman riding lawn mower is essential for performing maintenance or repairs. The carburetor is a vital component of the engine as it mixes the air and fuel, ensuring the engine runs smoothly. In this article, we will guide you through the process of locating the carburetor on your Craftsman mower step by step, and offer important safety precautions to consider before proceeding with any repairs.
Locate the Hood Release Latch
The first step in accessing the carburetor on a Craftsman riding lawn mower is to open the engine compartment. To do this, you will need to locate and release the hood latch. On most Craftsman riding mowers, the hood release latch is located at the front of the mower, typically near the steering wheel.
Identify the latch position
The latch may be a small handle or lever. Look for it just under the front of the hood.
Release the latch
Pull or lift the latch to unlock the hood. Make sure you handle the latch gently, as it can sometimes be stiff, especially after prolonged use.
Lift the hood

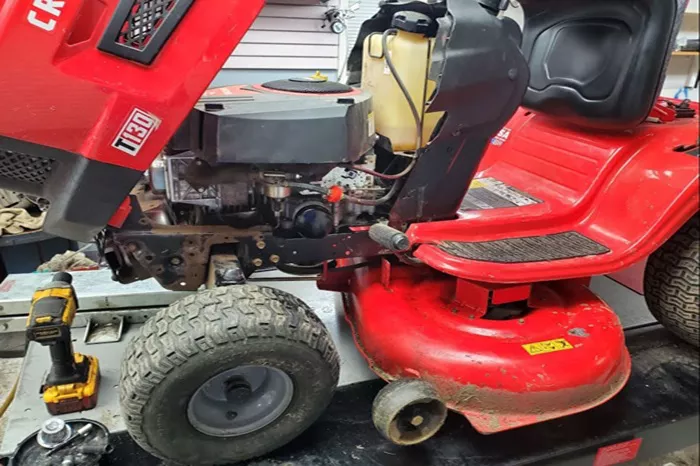

Once the latch is released, carefully lift the hood to expose the engine compartment. Ensure that the hood stays open during the process. If the hood does not stay open on its own, you may need to secure it with a prop or assist with your hand.
Identify the Engine
Once you have the hood open, the next task is to locate the engine. The engine is usually positioned at the front or center of the mower deck. Depending on the model, the engine may vary in size and shape, but it should be easily identifiable due to its larger, bulky components.
Engine placement
The engine is often encased in a metal housing and positioned above the mower’s deck. Look for the engine block and the associated parts like the spark plug, fuel tank, and air filter.
Positioning of other components
Once the engine is identified, your next goal is to locate the carburetor, which is generally situated near the engine.
Find the Carburetor
The carburetor is typically a small component that sits near the engine. It is usually rectangular or cylindrical in shape and often features several hoses and wires connected to it. The carburetor controls the flow of fuel and air into the engine, and its condition is crucial for maintaining the proper functioning of the mower.
Component shape and size
The carburetor is often larger than the surrounding parts, but still relatively small compared to the entire engine assembly.
Location near the engine
In most Craftsman riding mowers, the carburetor is positioned just above the engine. Look for it near the air intake manifold, which connects to the air filter and fuel lines.
Distinctive parts
You will notice fuel lines running to and from the carburetor. These fuel lines will be connected to the carburetor through rubber hoses or plastic fittings. The carburetor is also often linked to the air filter, which plays a crucial role in regulating the air that enters the carburetor.
Nearby Components
The carburetor on your Craftsman mower does not exist in isolation. It is usually located in close proximity to other components such as the air filter and fuel lines, which work together to keep the engine running efficiently.
Air filter
The air filter is typically located near the carburetor. It helps ensure that clean air is supplied to the engine. Over time, the air filter may get clogged with dirt and debris, affecting the carburetor’s performance.
Fuel lines
The fuel lines carry fuel from the gas tank to the carburetor, enabling the engine to run. These lines are typically made of rubber or plastic and can be identified by their dark coloring and connection to the carburetor.
Other parts
In addition to the carburetor, air filter, and fuel lines, there may be other parts that influence the carburetor’s functioning, including throttle cables and linkage.
Safety Precautions
Before proceeding with any maintenance or repairs on your mower, it is crucial to follow basic safety precautions to prevent injuries or further damage to the mower.
Turn off the engine
Always ensure that the mower is turned off before you begin working on it. This includes cutting the power supply to the engine by turning the key to the off position.
Allow the engine to cool
Mowers can get quite hot during operation. Give the engine enough time to cool down before you attempt to open the hood and work on the carburetor or other engine components.
Disconnect the spark plug
For extra safety, disconnect the spark plug wire. This will prevent the engine from accidentally starting while you are working on the mower.
Wear appropriate gear
If you are performing repairs or maintenance, make sure to wear gloves, protective eyewear, and other gear as needed to protect yourself from debris or sharp components.
Troubleshooting the Carburetor
If you are opening the engine compartment to troubleshoot the carburetor, be aware of some common issues that may require attention:
Clogged Carburetor
If your mower is not starting, it might be due to a clogged carburetor. Dirt or debris can block the fuel intake or the jets within the carburetor. In this case, cleaning the carburetor can help restore normal function.
Fuel Leaks
Fuel leaks around the carburetor could indicate worn-out gaskets or cracked fuel lines. Inspect the area around the carburetor for any signs of leaking fuel and replace any damaged parts.
Faulty Air Filter
A dirty air filter can restrict airflow to the carburetor, affecting engine performance. Check the air filter for dirt and replace it if necessary.
Conclusion
Locating and understanding the carburetor’s role in your Craftsman riding lawn mower is crucial for performing routine maintenance and troubleshooting potential issues. By following the steps outlined above, you can efficiently access and inspect the carburetor and surrounding components, ensuring that your mower runs smoothly. Always remember to follow safety precautions before starting any work on the mower to prevent accidents.
If you are unsure about handling repairs yourself, consult the mower’s user manual or seek professional help to ensure the best care for your mower. Regular maintenance and timely attention to the carburetor can extend the life of your Craftsman riding lawn mower and keep it running at peak performance.
