Maintaining your Snapper lawn mower ensures that your lawn stays pristine while preventing any future engine issues. One of the essential parts of your mower is the carburetor. It controls the mixture of air and fuel that enters the engine, allowing it to start and run properly. If your mower isn’t starting or running smoothly, the carburetor might be to blame. This article will guide you through the process of locating and maintaining the carburetor on various Snapper lawn mower models.
Location of the Carburetor
General Location Across Snapper Mowers

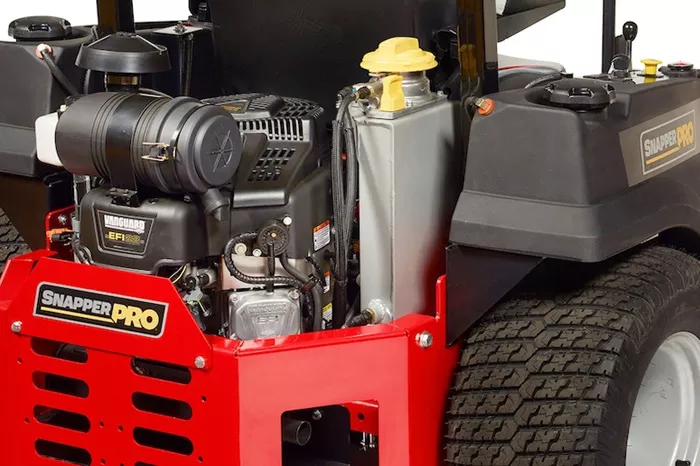

The carburetor on a Snapper lawn mower is typically located on the side of the engine, just next to the air filter. It’s a crucial component, as it is responsible for mixing the correct proportions of air and fuel for the engine. On most models, the carburetor is easily accessible and can be reached with minimal disassembly.
For reference, when you look at the side of the engine, you’ll often find the carburetor nestled underneath the air filter assembly. The carburetor’s placement near the air filter is essential because it needs a steady supply of air to regulate the fuel and air mixture.
Specific Snapper Models
Classic Series Snapper Mowers
For Snapper’s Classic Series, which includes both push mowers and self-propelled models, the carburetor is typically located behind the air filter cover. To access it, you will need to remove the air filter housing. In most cases, this housing is secured with a few screws, which can be easily unscrewed using a screwdriver or a drill with the appropriate bit.
Rear Engine Riding Mowers
On the rear engine riding mowers, the carburetor is positioned similarly on the side of the engine. However, these mowers are larger, so you may need to remove the engine cover to fully expose the carburetor. Look for the air filter housing near the back of the engine, and once removed, the carburetor will be visible.
Self-Propelled Mowers
For self-propelled Snapper mowers, which feature a drive system that propels the mower forward, the carburetor is again found near the air filter. These mowers might have slightly more compact engine compartments, so you may need to perform additional steps, such as removing engine covers or components surrounding the air filter, to access the carburetor.
Identification Features of the Carburetor
To identify the carburetor on your Snapper mower, look for the following key features:
Shape
The carburetor is usually a small, round or rectangular component with a series of tubes and connections. Its size can vary, but it’s typically around the size of a softball or smaller, depending on the mower’s engine size.
Connections
Fuel Line: The carburetor will have a fuel line connected to it, often made of rubber, leading directly from the fuel tank. This is one of the primary ways the carburetor gets fuel for the engine.
Air Filter Connection: The carburetor will also be connected to the air filter, often via a large hose. The air filter helps ensure that the air going into the engine is clean, which is essential for optimal performance.
Choke Lever: Many carburetors feature a choke lever, typically located near the air filter. The choke helps start the mower by adjusting the air/fuel mixture to make starting easier, especially in cold weather.
Physical Appearance
On many models, the carburetor is made of metal, although plastic parts may also be present.
The carburetor housing is often cylindrical, with a throttle linkage connected to a spring that helps adjust the engine’s speed.
Once you locate the carburetor, take note of the connections and components that are attached to it. This will help you perform maintenance and troubleshooting tasks more efficiently.
Model-Specific Instructions
Classic Series Snapper Mowers
For the Snapper Classic Series, the carburetor can be located on the right-hand side of the engine. The air filter assembly typically covers it, and in some cases, you may need to remove a few components for better access. Here’s a step-by-step guide to help you locate and access the carburetor:
Remove the Air Filter: Start by unscrewing the air filter cover, which is usually secured by screws or clips.
Inspect the Carburetor: Once the air filter is removed, the carburetor will be directly underneath. It will have a fuel line attached to it, and you may see other components such as the choke lever or throttle linkage.
Clean or Replace the Carburetor: After you’ve located it, you can clean or replace the carburetor. If you need to clean it, use carburetor cleaner and a soft brush to remove any debris or dirt.
Rear Engine Riding Mowers
On Snapper’s rear engine riding mowers, the carburetor is located similarly, but the engine is larger, and the compartment is a bit more enclosed. Here’s what you need to do to access it:
Remove the Engine Cover: If there is an engine cover or side panel, remove it using a wrench or screwdriver.
Locate the Air Filter: The carburetor will be next to the air filter, just as in smaller mowers. Remove the air filter housing carefully.
Inspect the Carburetor: After removing the air filter, the carburetor will be exposed. Check for any debris or issues with the fuel line, choke, or throttle linkage.
Self-Propelled Mowers
For self-propelled Snapper mowers, the carburetor is typically located close to the air filter but may be harder to access due to the mower’s compact design. Here’s how to locate it:
Remove the Air Filter: Start by removing the air filter cover, just like on other Snapper models.
Inspect the Carburetor: The carburetor will be behind the air filter assembly. Look for the fuel line and choke lever to help you identify it.
Maintain the Carburetor: You can clean the carburetor or inspect it for any fuel leaks, dirt, or damage.
Maintenance Tips
Maintaining the carburetor on your Snapper mower is crucial to ensure the longevity and performance of your machine. Here are some maintenance tips:
Clean the Carburetor Regularly: Over time, dirt, dust, and fuel residues can accumulate in the carburetor, which may hinder its performance. Use carburetor cleaner and a soft brush to clean the component. Make sure to clean all ports and jets, ensuring free airflow.
Check the Fuel Line: Inspect the fuel line for cracks or leaks. If it looks damaged, replace it immediately to avoid fuel leakage.
Replace the Air Filter: A clogged air filter can restrict airflow to the carburetor. Clean or replace the air filter regularly to ensure the carburetor receives enough air for efficient fuel combustion.
Adjust the Choke: If you are experiencing starting issues, check the choke. The choke should be engaged when starting a cold engine but should be disengaged once the engine warms up.
Troubleshooting Guide
Here are some common carburetor-related issues and troubleshooting steps:
1. Engine Won’t Start
Cause: The carburetor may be clogged or the fuel system may be faulty.
Solution: Clean the carburetor thoroughly, checking for any dirt, debris, or gum buildup. Make sure the fuel line is clear, and replace the fuel if it is old.
2. Rough Idle or Poor Engine Performance
Cause: A clogged carburetor or dirty air filter may affect engine performance.
Solution: Clean the carburetor and check the air filter. Replace the air filter if it’s dirty or damaged.
3. Fuel Leaks
Cause: A cracked fuel line or a loose carburetor connection.
Solution: Inspect the fuel line and carburetor connections. Tighten any loose connections and replace the fuel line if necessary.
Conclusion
Locating and maintaining the carburetor on your Snapper lawn mower is an important step in ensuring your mower runs efficiently. By following the steps outlined in this article, you can locate the carburetor, clean it, and troubleshoot any issues that may arise. Regular maintenance will help prolong the life of your mower, ensuring that your lawn stays neat and healthy. Always consult your owner’s manual for model-specific instructions and guidelines to keep your Snapper mower in top condition.
