When it comes to maintaining and repairing a lawn mower, understanding its components is essential. One of the most critical parts of a lawn mower’s engine is the carburetor. The carburetor plays a vital role in ensuring the engine runs smoothly by mixing air and fuel in the correct proportions. But what does a carburetor look like on a lawn mower? In this article, we will explore the appearance, function, and importance of the carburetor in detail.
The Basic Structure of a Lawn Mower Carburetor
A lawn mower carburetor is a small but intricate device typically located on the side of the engine. It is usually made of metal, such as aluminum, to withstand the heat generated by the engine. The carburetor is connected to the fuel tank via a fuel line and to the engine via an intake manifold.
External Appearance

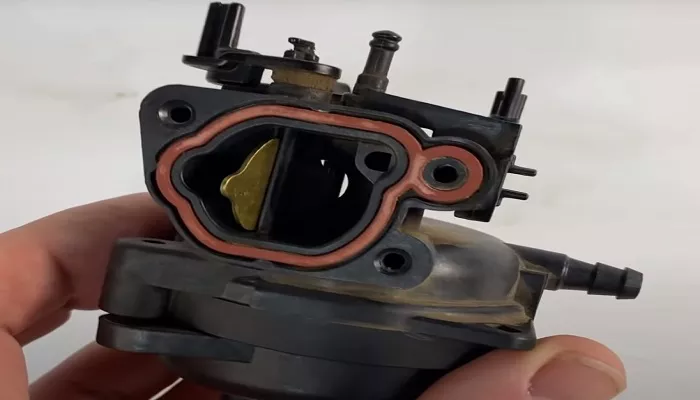

From the outside, a lawn mower carburetor may look like a small, boxy or cylindrical component with several tubes and screws attached to it. These tubes are often made of rubber or plastic and serve as conduits for fuel and air. The screws on the carburetor are used for adjustments, such as setting the idle speed and the air-fuel mixture.
Internal Components
Inside the carburetor, you will find several key components:
Float Chamber
This is a small reservoir that holds a specific amount of fuel. The float inside the chamber rises and falls with the fuel level, controlling the flow of fuel into the carburetor.
Jet
The jet is a small nozzle that controls the amount of fuel that enters the carburetor’s mixing chamber. It is crucial for maintaining the correct air-fuel ratio.
Throttle Valve
This valve regulates the amount of air that enters the carburetor. It is connected to the throttle lever on the lawn mower, which the operator uses to control the engine speed.
Venturi
The venturi is a narrow section inside the carburetor where the air speed increases, creating a vacuum that draws fuel into the air stream.
Choke Valve
The choke valve is used to enrich the air-fuel mixture during a cold start. It restricts the airflow, increasing the fuel concentration in the mixture.
How Does a Carburetor Work?
Understanding how a carburetor works can help you appreciate its importance in the lawn mower’s engine. The carburetor’s primary function is to mix air and fuel in the correct proportions for combustion. Here’s a step-by-step breakdown of how it works:
Air Intake
When the engine is running, air is drawn into the carburetor through the air filter. The air filter ensures that dirt and debris do not enter the engine.
Fuel Delivery
Fuel is delivered from the fuel tank to the carburetor via the fuel line. The fuel enters the float chamber, where the float regulates the fuel level.
Mixing
As air passes through the venturi, its speed increases, creating a low-pressure area that draws fuel from the float chamber through the jet. The fuel is then mixed with the air in the mixing chamber.
Combustion
The air-fuel mixture is then drawn into the engine’s combustion chamber, where it is ignited by the spark plug. This ignition produces the power needed to run the lawn mower.
Adjustments
The carburetor has several adjustment screws that allow you to fine-tune the air-fuel mixture and idle speed. Proper adjustment is crucial for optimal engine performance.
Common Types of Carburetors in Lawn Mowers
There are several types of carburetors used in lawn mowers, each with its own design and functionality. The most common types include:
Float-Type Carburetor
The float-type carburetor is the most common type found in lawn mowers. It uses a float to regulate the fuel level in the float chamber. As the fuel level drops, the float falls, opening a valve that allows more fuel to enter the chamber. When the fuel level rises, the float rises and closes the valve, stopping the flow of fuel.
Diaphragm-Type Carburetor
The diaphragm-type carburetor uses a flexible diaphragm instead of a float to regulate the fuel flow. The diaphragm moves in response to changes in pressure, allowing fuel to enter the carburetor as needed. This type of carburetor is often used in lawn mowers that operate at various angles, as it is less sensitive to orientation than the float-type carburetor.
Fixed-Venturi Carburetor
In a fixed-venturi carburetor, the size of the venturi is constant. The air-fuel mixture is controlled by adjusting the throttle valve and the jet. This type of carburetor is simple and reliable but may not provide the same level of performance as a variable-venturi carburetor.
Variable-Venturi Carburetor
A variable-venturi carburetor, also known as a “constant velocity” carburetor, adjusts the size of the venturi to maintain a constant air speed. This allows for more precise control of the air-fuel mixture, resulting in better engine performance and fuel efficiency.
Signs of a Faulty Carburetor
A malfunctioning carburetor can cause a variety of problems in your lawn mower. Here are some common signs that your carburetor may need attention:
Difficulty Starting
If your lawn mower is hard to start or won’t start at all, the carburetor may be clogged or improperly adjusted.
Poor Performance
A lawn mower with a faulty carburetor may run rough, stall, or lack power. This is often due to an incorrect air-fuel mixture.
Black Smoke
Black smoke from the exhaust is a sign that the engine is running too rich, meaning there is too much fuel in the air-fuel mixture. This can be caused by a stuck float or a clogged jet.
High Fuel Consumption
If your lawn mower is using more fuel than usual, the carburetor may be leaking or improperly adjusted.
Backfiring
Backfiring occurs when unburned fuel ignites in the exhaust system. This can be caused by a lean air-fuel mixture, which may be due to a clogged jet or a vacuum leak.
How to Clean and Maintain a Lawn Mower Carburetor
Regular maintenance is essential to keep your lawn mower’s carburetor in good working condition. Here’s a step-by-step guide on how to clean and maintain your carburetor:
Tools and Materials Needed: Screwdrivers;Wrenches;Carburetor cleaner;Compressed air;Safety glasses;Gloves;Clean cloth;
Step-by-Step Cleaning Process
Safety First
Before you begin, make sure the lawn mower is turned off and the spark plug is disconnected to prevent accidental starting.
Remove the Carburetor
Locate the carburetor on the side of the engine. Disconnect the fuel line and any linkages connected to the carburetor. Use a screwdriver or wrench to remove the bolts holding the carburetor in place.
Disassemble the Carburetor
Carefully disassemble the carburetor, taking note of the position of each component. Remove the float, jet, and any other removable parts.
Clean the Components
Spray each component with carburetor cleaner to remove dirt, grease, and varnish. Use a clean cloth to wipe away any residue. For hard-to-reach areas, use compressed air to blow out any debris.
Inspect for Damage
Check each component for signs of wear or damage. Replace any parts that are worn or damaged.
Reassemble the Carburetor
Once all components are clean and dry, reassemble the carburetor in the reverse order of disassembly. Make sure all screws and bolts are tightened securely.
Reinstall the Carburetor
Reconnect the fuel line and linkages. Reinstall the carburetor on the engine and secure it with the bolts.
Test the Lawn Mower
Reconnect the spark plug and start the lawn mower. Check for any leaks or unusual noises. Adjust the carburetor settings if necessary.
Conclusion
The carburetor is a crucial component of a lawn mower’s engine, responsible for mixing air and fuel in the correct proportions for combustion. Understanding what a carburetor looks like and how it works can help you maintain and repair your lawn mower more effectively. Regular cleaning and maintenance of the carburetor can prevent common problems and ensure your lawn mower runs smoothly for years to come.
By following the steps outlined in this article, you can keep your lawn mower’s carburetor in top condition and enjoy a well-maintained lawn all season long. Whether you’re a seasoned lawn care professional or a weekend warrior, knowing how to care for your lawn mower’s carburetor is an essential skill that will save you time and money in the long run.
